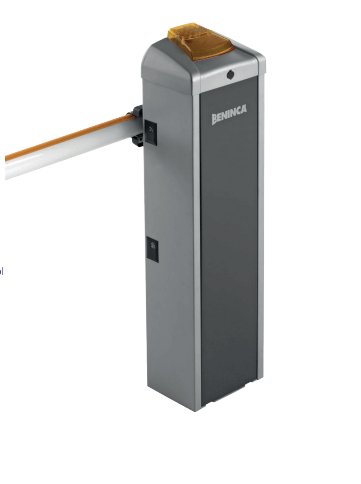

Beninca EVA Boom Gate Barrier for Car Park Traffic Control with LED arm
Beninca EVA Boom Gate Operator
Two versions - 3M or 5M arms for commercial applications...

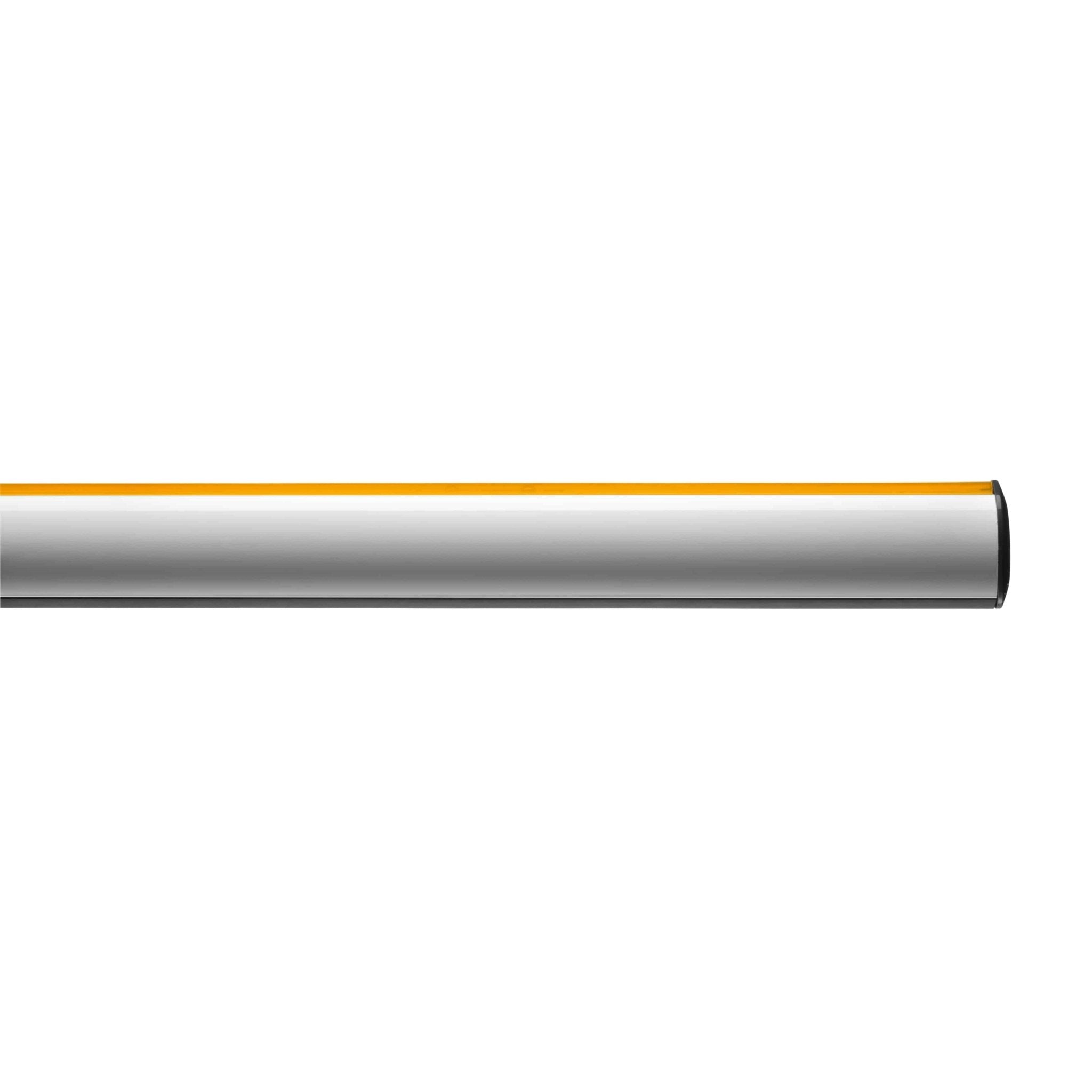

The Beninca EVA is an Italian made boom gate barrier controlled to control traffic in commercial applications such as company, school & hospital car parks as well as a variety of business to protect and control traffic. This Boom gate comes with a yellow LED strip across the boom arm ensuring that the boom arm is visible at night or in extreme weather conditions. The boom arm can be easily cut to size to suit your opening
The 24v dc motor can handle intensive usage and we can recommend this boom gate for up to 1000 operations per day. The boom gate features a absolute encoder ensuring precise movement of the arm with adjustable slow down and speed optionsPower options includes main power connection, external transformer 24v supply from a nearby powerpoint up to 50 meters away and also for solar power application, check out our solar kit in our store. Lots of safety & access control accessories can be added to control and protect the area of the boom gate barrier.
This barrier is made in Italy, designed for commercial applications like company, school, and hospital car parks. It's ideal to protect and manage traffic. With a yellow LED strip, the barrier is visible during low light conditions or when the weather gets extreme. You can easily adjust the boom arm to fit your needs and the powerful 24v dc motor can handle up to 1000 operations per day.
Enjoy slow down and speed options with an absolute encoder for precise movement. Power options include a main power connection and external transformer. You can even power it with solar. Need more protection? Find a wide range of safety and access control accessories in our store.
TECHNICAL DATA:-
Power supply | 100 ÷ 250 Vac (50-60Hz) |
Motor supply | 24 Vdc |
Max absorbed current | 3.1 / 1.6 A |
Torque | 205 Nm |
Opening time | 3.5” ÷ 6” |
Duty cycle | intensive use |
Protection level | IP44 |
Built-in control unit | YES |
Integrated receiver | YES |
Encoder | YES |
Operating temperature | -20°C /+50°C |
Lubrication | GREASE |
Passage width | 5.0 m |
Weight | 54.8 kg |
N. motors per pallet | 9 |
Powered Gates Australia is an authorized distributor of Beninca gate automation systems - Quality Italian made automation
