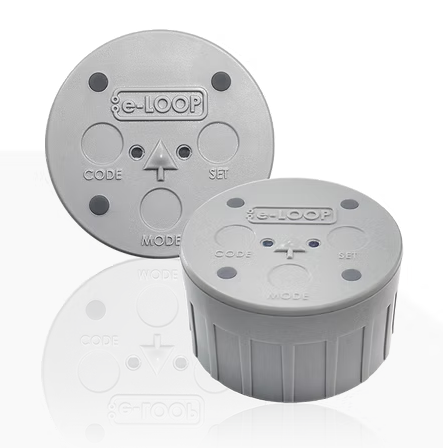

Wireless Vehicle Automatic Exit Sensor - In ground

Perfect for dirt or gravel driveways!

This commercial-grade wireless vehicle detection system is engineered for automatic gate activation on dirt and gravel driveways where traditional loop installation may be challenging. The inground presence-mode sensor combines radar and magnetometer technology to reliably detect vehicles regardless of surface conditions or magnetic field variations.

Ideal for property access control, the system transmits vehicle detection data to the E-Trans 50 transceiver, triggering your automatic gate opener without requiring buried cables. The robust design handles all vehicle weights and operates seamlessly on unprepared or loose surfaces where conventional inductive loops fail.

Advanced customization via e-diagnostics remote allows you to adjust sensitivity, dead zones, and detection parameters to suit your specific driveway layout. With 6-year battery life, IP68 weatherproofing, and 128-bit AES encryption, this system delivers dependable security and longevity in outdoor Australian conditions.

Compatible with gate controllers featuring open-input and auto-close functionality. Installation uses Sikaflex for secure mounting. Kit includes the E-Loop sensor, E-Trans 50 transceiver, and calibration magnet.

Open's your electric gate automatically!

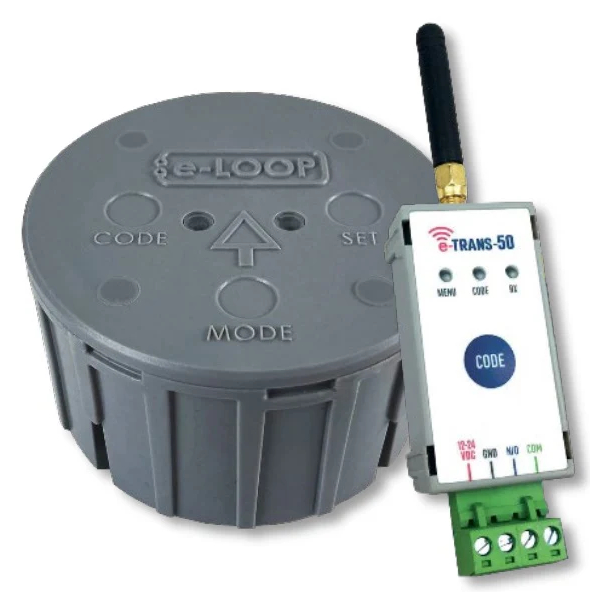

Kit Includes:

• E-Loop Inground Presence Mode
• E-Trans 50 (Transceiver)
• Calibration Magnet


Key Features:

• Easy Installation
• Set Radar Settings Including Dead Zones, Sensitivity, And Magnetic Field Release Levels
• 6-8 Year Battery Life
• Reliable Radio Communications With Transceivers
• High Security 128-Bit AES Encryption
• Exit Detection Mode
• 8 Hz Sampling Rate
• Auto Calibration
• IP68 Ingress Protection

Specifications:

• Frequency: 433.39 MHz

• Bitrate: 9.6 KBPS
• Bandwidth: 250 kHz
• Antenna Type: PCB
• Nominal Output Power: 10 dBm
• Receive Sensitivity: -126.2 dBm
• Security: 128-Bit AES Encryption
• Power: 4 * 3.6 V 2700ma Batteries
• Operating Temp: -4°F To 176°F

Connects to all Gate motors!

Battery change Video:

Installation guide below:
