Rising Hinge for Automatic Swing Gate
Quality Adjustable Rising hinges!

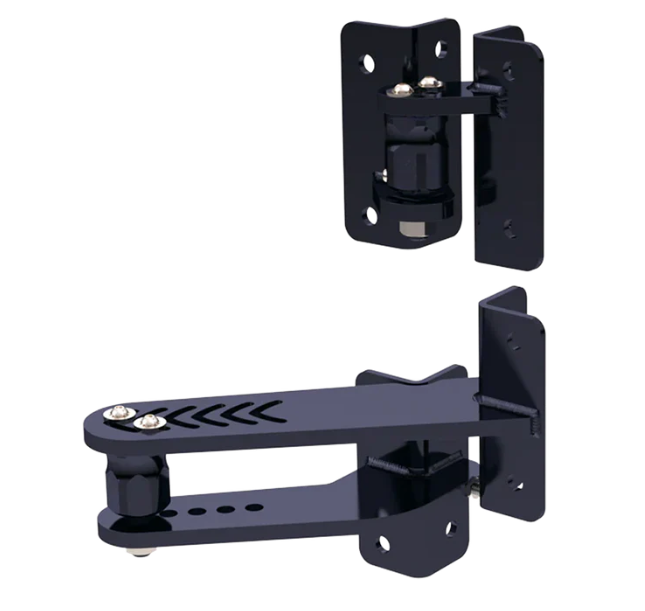

These rising hinges are expertly crafted to enable your automatic swing gate to gracefully lift as it opens on sloping driveways. Supplied as a meticulously engineered pair of top and bottom hinges, they offer universal compatibility for both left and right gate installations.
Designed to support steel or aluminium gates weighing up to 120kg per leaf, these hinges feature an adjustable bottom bracket that accommodates slopes up to 14 degrees with precision. The incorporation of a stainless steel ball and socket joint ensures smooth, durable movement, while an integrated anti-theft mechanism provides discreet yet robust security. This sophisticated solution seamlessly combines functionality, adaptability, and protection for your driveway swing gates.
For swing gates with uphill driveways!
Tech Specifications
- Rated to 120kg per leaf with a max width 2m
- Patented adjustment mechanism
- Slopes of up to 14 degrees

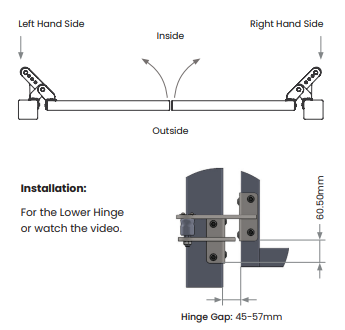

- Hinge gap between post & gate of 45-57mm
- Suitable for automated swing gates
- Recommended motors for rising hinge are Beninca Tom 50, Sam with rising hinge arm kit or Premier
