Locinox Venus Automatic Pedestrian Swing Gate Motor

A motor made for pedestrians!

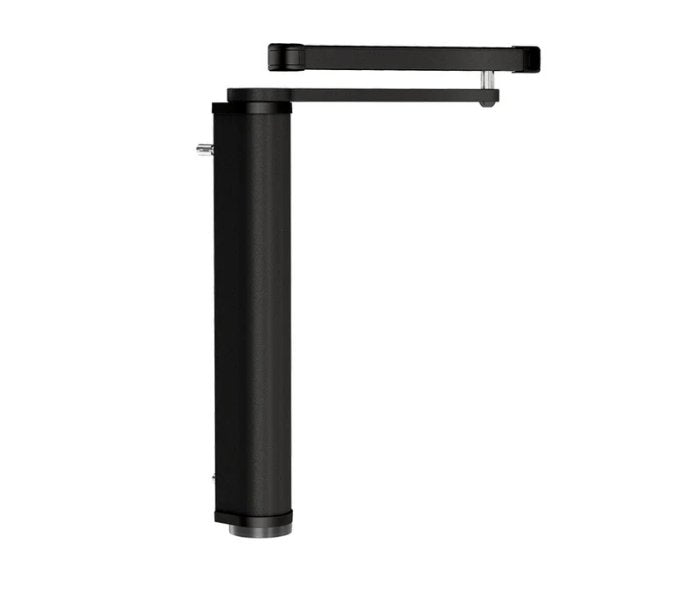

The Locinox Venus pedestrian swing motor offers a seamless, effortless opening & closing experience for pedestrian swing gates. Its compact, all in one design allows for easy installation on any post and hinge, using one of three arm types. The cutting-edge motor maintains its performance even under manual pressure. Additionally, when integrated with access control, the Venus transforms into a automatic gate opener.

Perfect for gates up to 1.4 meters wide and up to 100 kg, the Venus pedestrian gate motor is equipped with brushless motor technology specifically designed for outdoor use, whether manually operated or fully automated. Especially suitable for schools, apartment buildings and government sites as well as easy wheelchair or disabled access.

Check out the video below:-

Pedestrian Gate Motor Specifications:

• Motorised gate closer with integrated electronics
• 240V mains is required at the motor
• 150 Nm torque
• Fits on 80 mm profiles
• For pedestrian gates up to 1400 mm wide and 100 kg
• Steel gear box
• Anodised aluminium cover

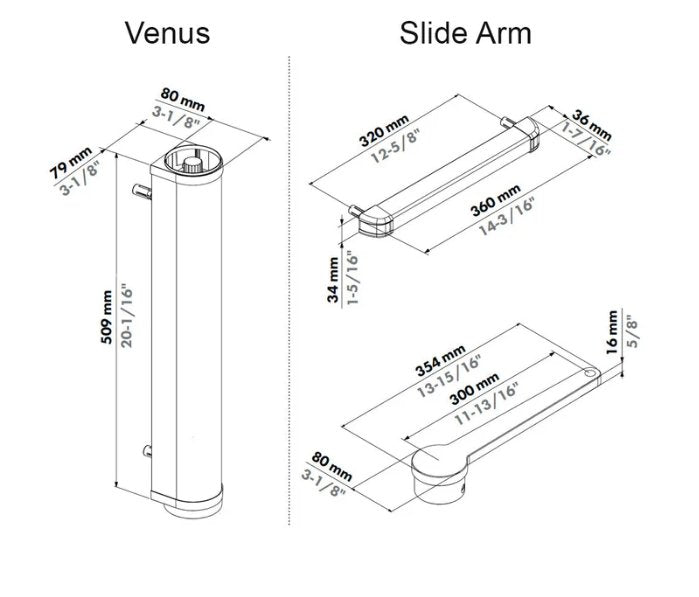

• 3 different arm options for installation
• Easy mounting with Quick-Fix
• Motor voltage: 24V DC
• Integrated warning light
• Automated obstacle detection with reverse function
• Brushless motor: long lifespan and intensive usage
• Reversible motor with back drivability for easy manual use - to be combined with a electric gate lock
• Compact and vandal-proof design
• Made in Belgium
