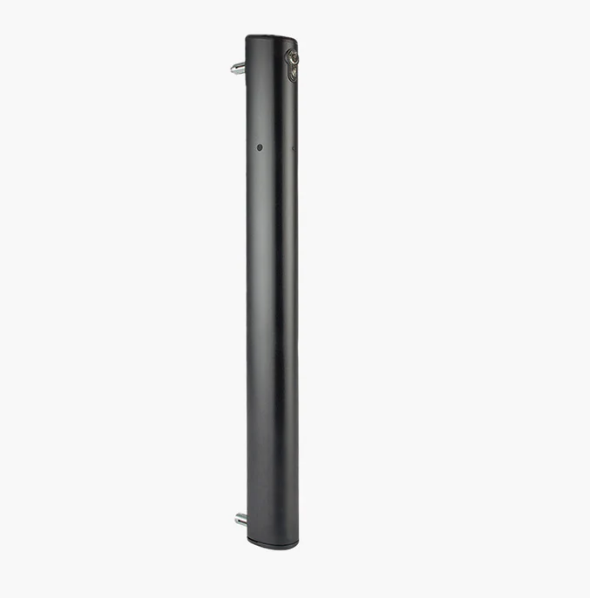

Locinox Gate & Door Electric Drop Bolt Lock

Sale price$1,210.00

This lock can throw 120mm into the ground for a very solid & secure gate!

Increase your gate security with a convenient, automated solution. The sleek, black design will complement any gate style, while its advanced electrical operation offers secure locking at the push of a button. Constructed with durable materials, it withstands outdoor conditions and can be easily integrated into existing access control systems.

Enjoy enhanced convenience and peace of mind with the Locinox Motorised Electrical Drop Bolt, Made in Belgium & suitable for automated swing gates & doors

Kit comes with electric drop bolt, power supply 24v dc & bolt down stopper

Gate lock technical specifications:-

  • Vandal-proof, powder coated aluminium housing
  • To be connected to the warning light on automated gates (min 2 sec prewarning signal) or directly on the gate automation
  • Automatic detection and memorisation of the continuous or pulse signal
  • Mechanical release possible (by key) in case of emergency
  • The integrated obstacle detection will automatically stop the drop bolt movement in case of overpressure to avoid injuries.
  • Throw: max 120 mm
  • Drop bolt diameter: 20 mm - hole in ground should be 24mm
  • For gate profiles: 40 mm or more
  • Power consumption: Normal: 25 W / Peak: 55W
  • 5 m cable included
  • Included: 3012-37-STD cylinder
  • To connect to a Locinox PowerStone 60W

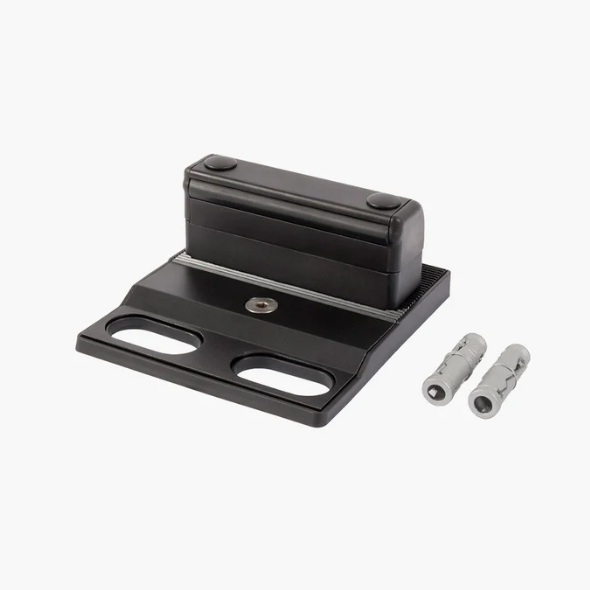

Gate stopper technical specifications:-

  • Surface mounted design, suitable for surface mounted drop bolts
  • Maximum drop bolt axle diameter: Ø 20 mm
  • Adjustable in height: distance between finished ground level & bottom of the gate: 20 to 45 mm
  • Adjustable in depth, different gate profiles possible - 40 to 50 mm
  • Anchor pins included
  • Material: Black aluminium top plate
