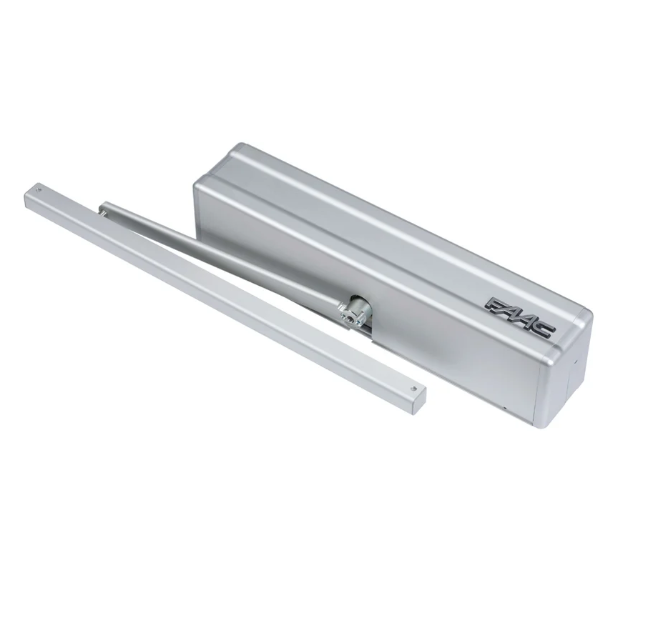

FAAC Pedestrian Swing Door Operator 950N2

Quality Pedestrian Access Motor

The FAAC 950N2 pedestrian swing door operator delivers reliable automation for high-traffic commercial entrances, healthcare facilities, and public spaces. This robust unit features intelligent microprocessor control with real-time obstacle detection, ensuring safe and smooth operation every time. With flexible installation options, dual electronic boards, and the ability to configure master/slave setups for double-leaf doors, it adapts to diverse architectural requirements. Built to handle leaves exceeding 360kg in continuous use while maintaining strict European Safety Standards compliance, the 950N2 combines dependable performance with professional design.

FAAC has led the automatic pedestrian door industry for over 60 years, earning recognition for advanced technology, outstanding reliability, and environmental responsibility. The 950N2 represents this legacy with carefully selected components to deliver consistent performance across demanding Australian environments, from -20°C to +55°C operating temperatures.

Key Features:

• Flexible installation on architrave or door structure
• Anodised aluminium or moulded ABS housing options
• Master/slave configuration for double-leaf automation
• Dual electronic control boards with microprocessor management
• Magnetic encoder for continuous angular position detection
• Selectable operating modes: automatic, manual, night, open
• Adjustable opening and closing times (4-10 seconds)
• Automatic obstacle detection with immediate re-opening
• Manual push/pull operation during power loss
• IP23 protection rating for indoor use

Specifications:

• Power Supply: 220-240V~ 50/60Hz
• Max Power: 100W | Standby: 5W
• Motor: 24V powered
• Dimensions: 530mm L × 160mm D × 105mm H
• Weight: 10kg
• Max Leaf Opening: 100-125 degrees
• Operating Temperature: -20°C to +55°C
