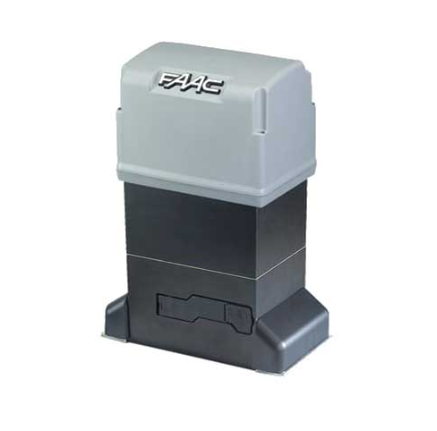

FAAC 844 Sliding Gate Motor - Industrial

Heavy Duty Sliding Gate Operator

Free Australia wide shipping!

The FAAC 844 Sliding gate opener is a Italian made motor suitable for heavy sliding gates up to 1800kg and is primarily used for commercial applications. The 240v motor travels at speeds up to 160mm per second and has a duty cycle rating of up to 70% indicating use for semi-intensive usage. This motor can also be used on sloped sliding gates up to 300kg.

Kit includes:

1 x FAAC 844 Motor

1 x FAAC plug in radio receiver

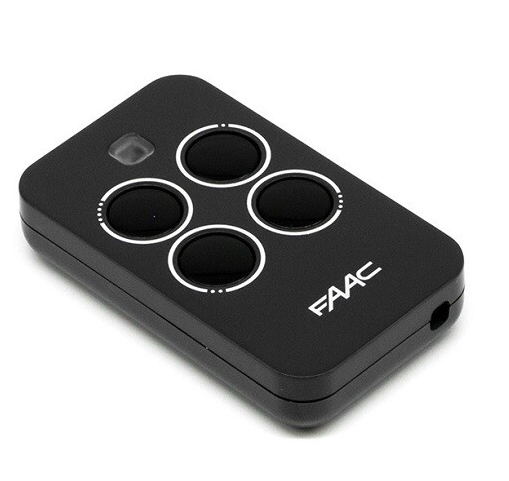

2 x FAAC 4 button remote controls

For gates up to 1800kg!

FAAC 844C Gearmotor for sliding gates with max. weight of 1800Kg, with Z16 pinion.

• Ideal for commercial and industrial applications
• Anti-crushing safety
• As the gearmotor is non reversing, no electric locks need to be installed
• In the event of a power cut, the key-operated release device makes it possible to open and close the gate manually
• Twin-disk clutch in oil-bath
• Inductive or magnetic limit switch (according to model)
• Adjustable speeds for open and close
• Encoder for precise moment and safety
• Key protected manual release
• Magnetic travel limit device, simplified installation of travel limit magnets
• Oil lubricated for efficient heat dissipation and increased use frequency.
• Optimized power throughout the opening and closing cycles
• E781 integrated control board
• Motor power 650W - 3.5 Amp 240v
• Weight 14.5kg
