Beninca Tom 30 Double Swing Gate Linear Motor - for gates to 3m & 500kg

Sale price$1,475.00 Regular price$1,650.00
Save $175.00

🇮🇹 Italian Made 🇮🇹

Double Swing Gate Automation up to 6m opening

⭐

Powered Gates 5 star product! Australia Wide FREE Delivery!

*** 3 YEAR WARRANTY ***

Beninca has been a leading automation company spanning over 40 years with a quality range of Italian made gate automation products.

The Beninca Tom Linear Swing Gate Motor is a premium swing gate operator made in Italy. It is suitable for single or double hinged swing gates for residential applications.

At just 96mm wide, the new Beninca Tom swing gate motor can effectively move a swing gate up to 3m in gate leaf size and up to 500kg. When the team at Powered Gates Australia were introduced to this motor we were immediately impressed with its quality and smart features including a removable top cover allowing for easy adjustment of the inbuilt opening and closing mechanical stops.

This superior swing gate motor can open gate up to 110 degrees and be powered by 230v mains, 24v external transformer or is also suitable for solar powered applications. Our heavy duty solar kits are suitable for this product. Check out more info via our Solar gate kits in our online superstore.

The manual release wheel is made of brass to maximise its life and ensure reliability and long lasting operations. The main worm drive gear is protected by a seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments which are common in Australia.

BENINCA TOM PRODUCT VIDEO

This swing gate motor kit comes with:-

2 x Beninca Tom 30 Linear Drive swing motors for a double swing gate

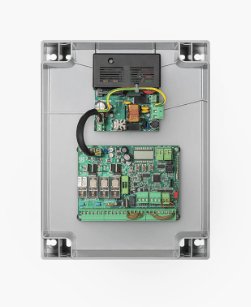

1 x Control Board - for 24vdc motors

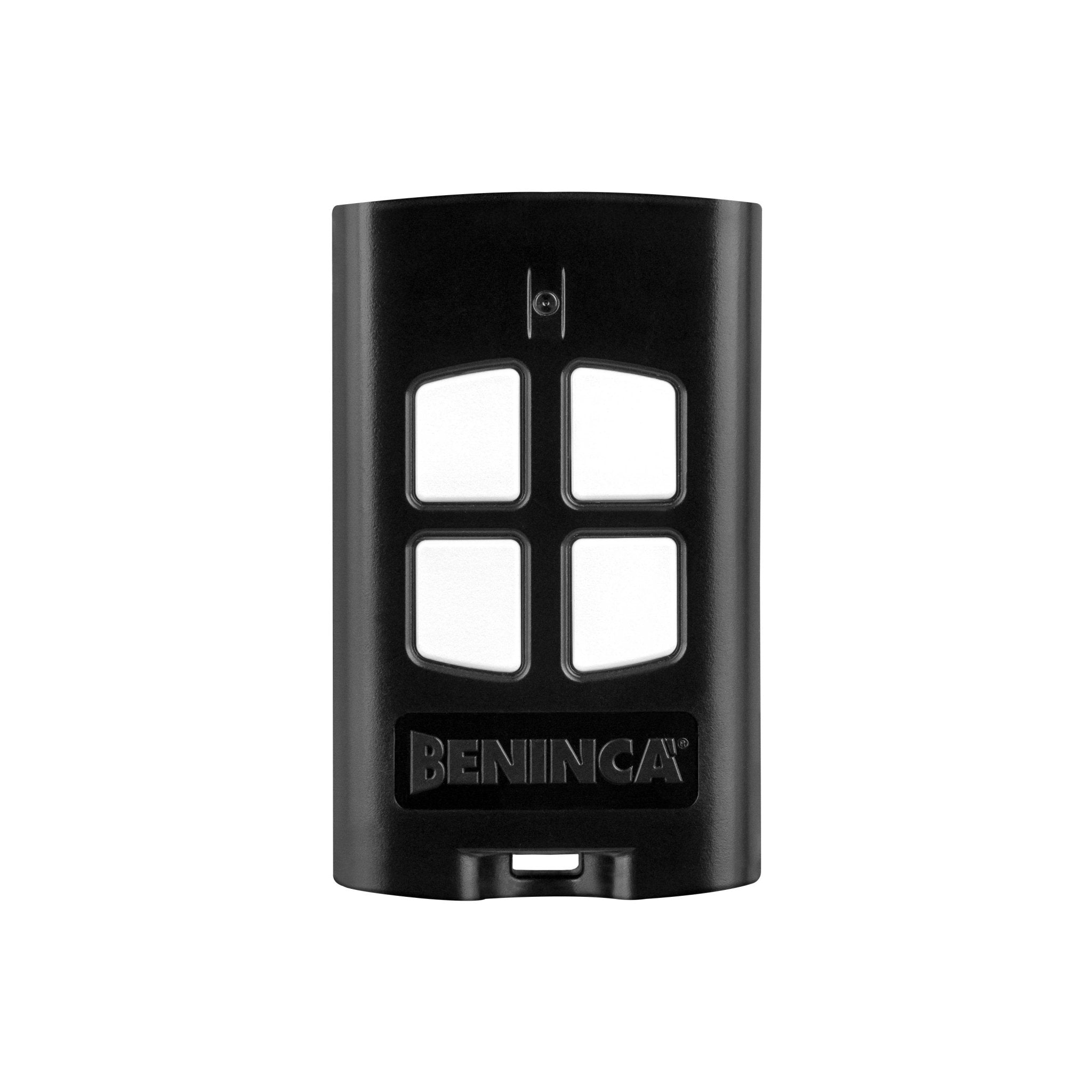

3 x Beninca Remote controls

Beninca Tom 30 Swing Gate Motor Specifications:-

  • Motor Voltage - 24 volts DC
  • Current at use - 5.5A
  • Motor power - 89W
  • Maximum thrust - 1500N
  • Opening Time 90 degrees - 11 seconds
  • Maximum gate width - 3000 mm
  • Duty cycle - 80%

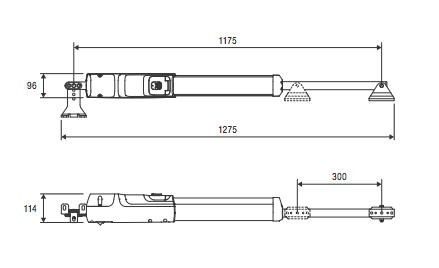

  • Height - 114mm Width - 96mm Length -1175mm
  • Weight - 9 Kg
  • IP rating - IP44

CABLE REQUIREMENTS: You will need to run 2 core for motor power (1.5mm2) and optional 3 core Security cable if you want to use the encoder function (4 core 0.5mm2)

Also available in model up to 5m gate leaf and 700kg, check out TOM 50 in our store!

Powered Gates Australia is an authourized distributor of Beninca Gate Automation systems across Australia
