Which Centsys Sliding Gate Motor Is Right for You?

Finding the Right Centsys Motor for Your Gate

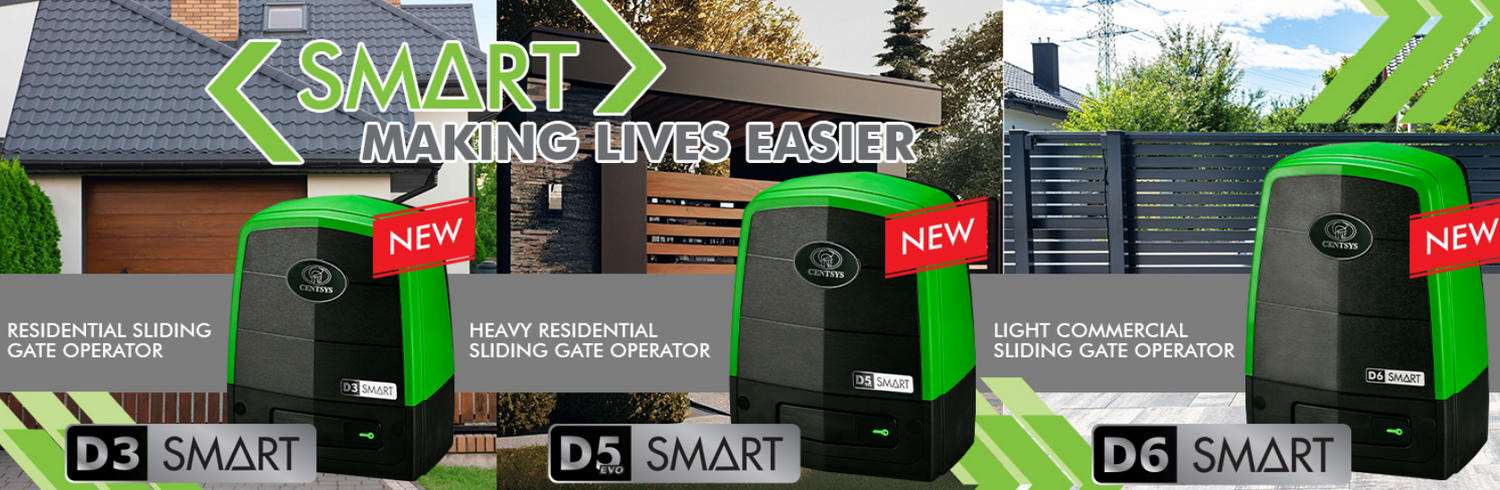

The Centsys SMART range of sliding gate motors looks similar at first glance, but the differences between models are significant. Choosing the wrong one can mean premature wear, poor performance, or outright failure. The four models Powered Gates Australia worth comparing are the D3 Smart, D5-Evo Smart, D6 Smart, and D10 Smart.

Before you look at anything else, ask yourself one question: is your driveway flat or sloped? This single factor determines whether a 12V or 24V motor is appropriate for your installation. Get this wrong and you are setting yourself up for problems. Gates on slopes require extra care and 24v motors generally perform better than 12v motors.

All four models share smart features including MyCentsys app compatibility, battery backup as standard, and solar power support. Where they differ is gate weight capacity, motor voltage, speed, push force, and control board capability. Centsys (Centurion Systems) has been manufacturing gate automation products since 1986 and holds ISO 9001:2015 certification, so you are working with proven engineering across the entire range. By the end of this guide, you will know exactly which model suits your gate, your property, and your usage requirements.

Centsys SMART Range at a Glance: Spec Comparison Table

Here is a side-by-side breakdown of the four SMART sliding gate motors. These specs come directly from Centsys product documentation.

Specifications D3 - D5-Evo  D6 - D10
Motor Voltage	12V DC	12V DC	24V DC	24V DC
Gate Weight Capacity	Up to 300kg	Up to 500kg	Up to 600kg	Up to 1,000kg
Max Gate Length	Up to 10m	Not specified	Not specified	Not specified
Top Speed	~24m/min	Up to 24m/min	35–36m/min	22–26m/min
Rated Push Force	12kgf	17kgf	17kgf	30kgf
Break-in Force	Not specified	1,000kg	1,000kg	Not specified
Duty Cycle (Mains)	25%	50%50%	45%
Max Daily Operations	~20	Not specified	102 (normal) / 209 (power-saving) standby cycles	Up to 750
Battery Backup	Yes (battery-driven)	Yes (1 x 7Ah)	Yes (2x7Ah)	Yes (2x7Ah)
Power Input	110–240V AC, 16V AC, or Solar	110–240V AC or Solar	110–240V AC or Solar	90–240V AC
IP Rating	IP55
Slope Suitable	No	No	Yes	Yes

A few things to note: the D3 Smart and D5-Evo Smart share the same physical dimensions and 12V architecture. The key differences between them are gate weight capacity, I/O count, and accessory compatibility. For sloped driveways, only the D6 Smart and D10 Smart are recommended.

12V vs 24V: Why Motor Voltage Is the Most Important Spec

Motor voltage is not just a number on a spec sheet. It determines how much torque the motor can deliver, how well it performs under load, and how many battery backup cycles you get during a power outage.

12V motors (D3 Smart, D5-Evo Smart) are well suited to flat driveways, lighter residential gates, and lower-traffic properties. They run quietly and efficiently when conditions are straightforward, but reach their limits quickly when the going gets tough.

24V motors (D6 Smart, D10 Smart) deliver greater torque, handle demanding conditions with ease, and offer significantly more battery backup cycles. The D6 Smart's 24V system provides up to 209 battery backup cycles in power-saving mode with its 2x7Ah batteries. For Australian properties affected by storm-related power outages, that kind of reserve is a necessity, not a luxury.

Here is the critical rule for sloped installations: a 5-degree incline can increase the effective load on a motor by 30–40%. That means a 600kg gate on a modest slope may place the equivalent resistance of 800kg or more on the motor during uphill travel. Only the D6 and D10 (both 24V) should be used on any sloped driveway. Running a 12V motor on a slope accelerates wear on the gearbox, strains the battery system, and risks gate failure. If your driveway has any incline at all, start your search with the D6 or D10.

Control Board Features: What Sets Each Model Apart

Beyond raw motor specs, the control board is where these four models really diverge. The board determines what accessories you can connect, how much control you have over scheduling, and what diagnostics are available.

D3 Smart

The D3 Smart has just 2 onboard I/O inputs. If you plan to add advanced security accessories down the track, the D3 will not support them. Buyers should know this before purchasing.

D5-Evo Smart

The D5-Evo Smart steps up considerably. It includes an onboard NOVA code-hopping multichannel receiver, ChronoGuard timer technology for automated scheduling and more I/O than the D3. It is fully compatible with the SMART Siren and GLX900 gate lock, making it the better 12V option for buyers who want a more complete security setup.

D6 Smart

The D6 Smart features Hall Effect position control technology for precise gate positioning, a vibration and tamper sensor, an intelligent battery charger with onboard diagnostics, and 1,000kg break-in force. Full accessory compatibility and an IP55 weather rating make this a robust all-rounder.

D10 Smart

The D10 Smart carries the highest-tier control board in the range. With a rated push force of 30kgf, up to 750 daily operations, a 45% duty cycle, and a die-cast aluminium gearbox, it is built for commercial access control integration where reliability under heavy use is non-negotiable.

A word of caution: the D5-Evo Smart and the D5 Smart are different products. The D5 Smart uses a 24V DC motor with speeds up to 36m/min and a 1,500-button receiver memory, while the D5-Evo Smart uses a 12V DC motor. If you are searching for a "D5," confirm which model you are actually purchasing before you proceed.

All four SMART models are compatible with the MyCentsys Remote app, giving you wireless setup, gate control, advanced diagnostics, and real-time notifications from your smartphone.

Which Centsys Motor Should You Choose?

Here is a practical breakdown based on real-world buyer profiles:

• D3 Smart: Best for light residential gates up to 300kg on a flat driveway. Suits low-traffic properties with roughly 20 operations per day. A good fit for budget-conscious buyers who do not need advanced security accessories like the SMART Siren or GLX900.
• D5-Evo Smart: Best for residential gates up to 500kg on a flat driveway. Choose this if you want the onboard receiver, ChronoGuard scheduling, and full SMART accessory compatibility without stepping up to a 24V system.
• D6 Smart: Best for residential and light-commercial gates up to 600kg, and essential for any property with a light sloped driveway. The fastest residential motor in the range at 35–36m/min, with maximum battery backup and full smart diagnostics. This is our most popular recommendation for Australian homes.
• D10 Smart: Best for commercial and heavy industrial gates up to 1,000kg. Built for high-traffic sites needing up to 750 daily operations, with a robust die-cast aluminium gearbox that handles intermittent use.

One principle we always share with customers: buying a motor rated exactly at your gate weight is a false economy. If your gate weighs 480kg, do not squeeze it into a D5-Evo rated at 500kg. Going one tier up (a D6 in this case) means the motor works well within its capacity, runs cooler, lasts longer, and costs less in maintenance over its lifetime. Having completed over 2,500 installations since 2015, we have seen first hand how right-sizing pays off.

All four models include battery backup as standard and support solar power, making them suitable for remote or off-grid Australian properties where mains power is not always reliable.
