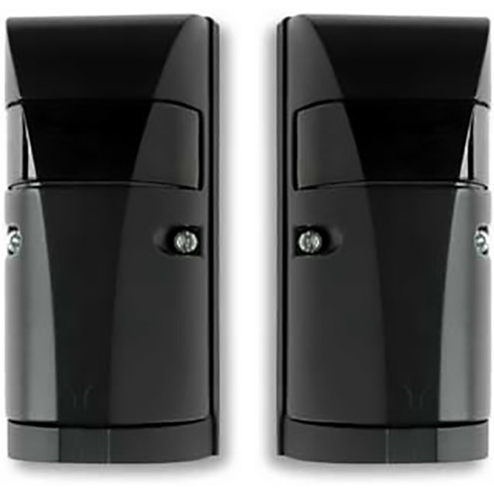

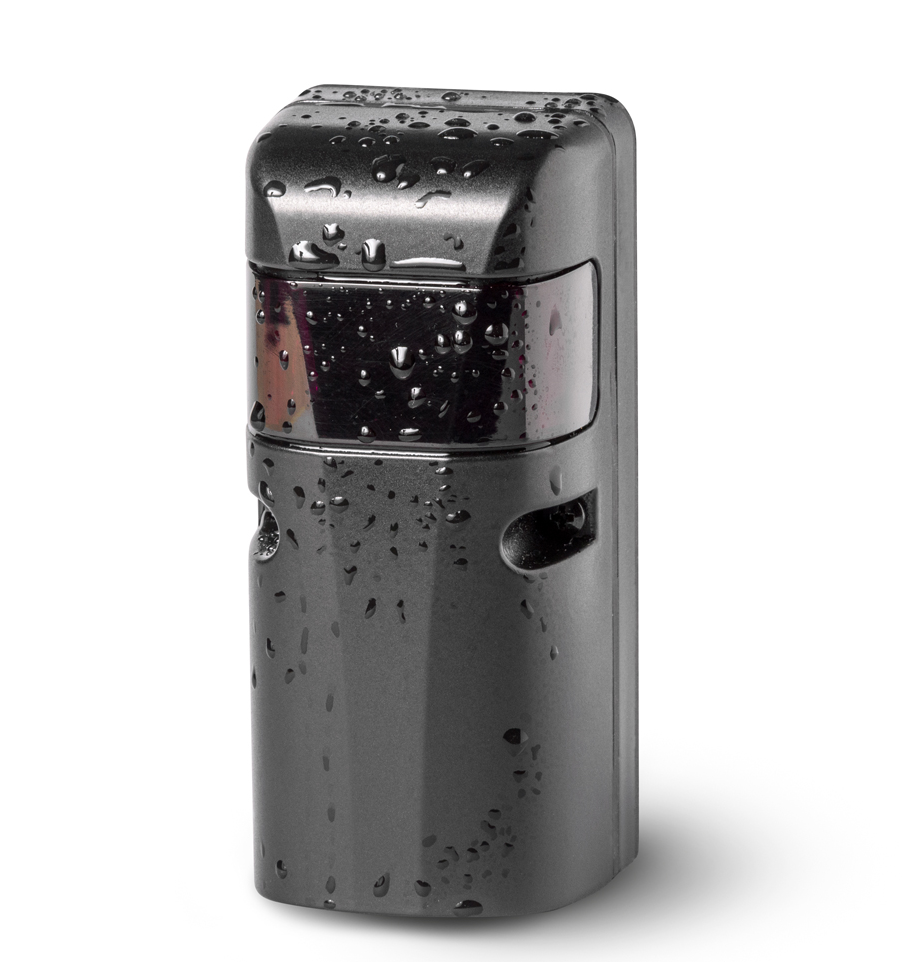

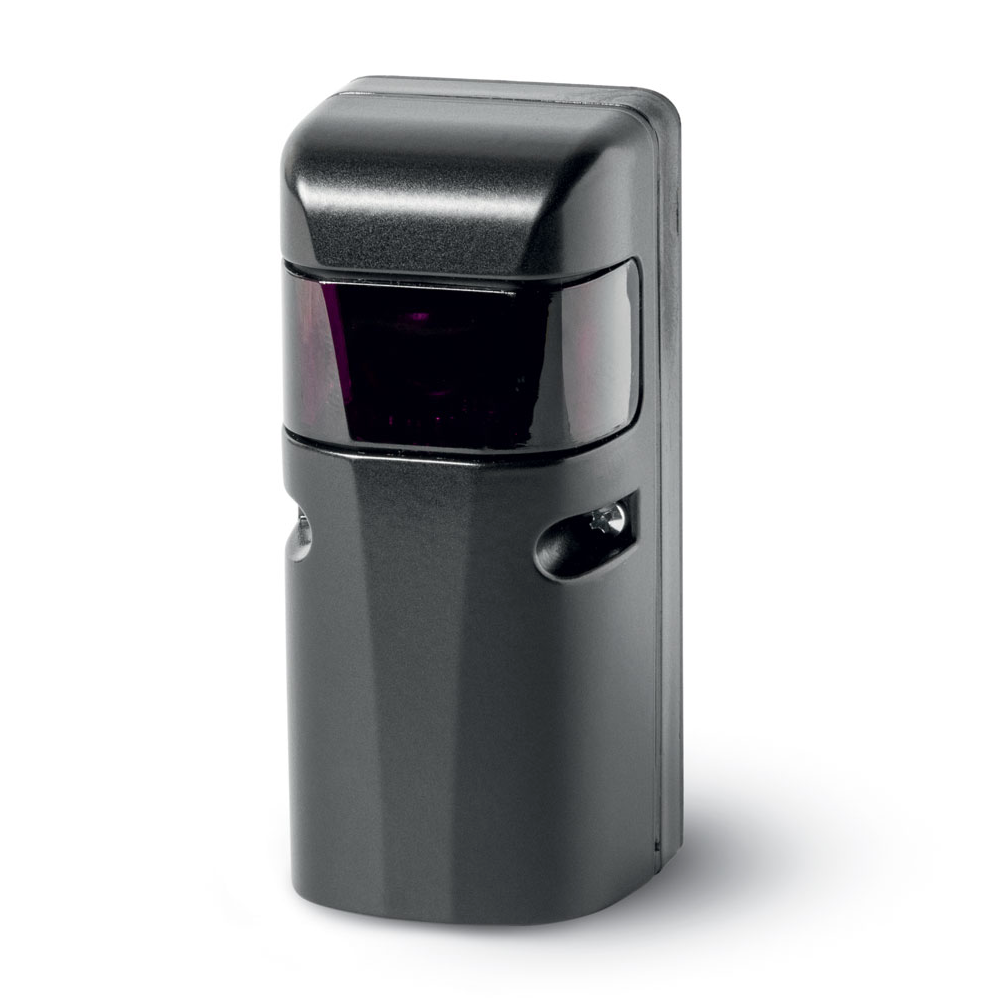

Safety Sensor for Gates & Doors - Anti - Vandal

For High Security applications

This heavy duty anti-vandal safety sensor operates via infrared beam detection technology, establishing a continuous optical barrier across the sliding, boom or swing gates. Upon beam interruption, the photocell transmits a signal to the gate controller, triggering immediate motor deactivation or directional reversal to eliminate collision hazards.

The system provides critical safety functionality for automated gate installations, protecting against impact incidents involving personnel, vehicles, fauna, and fixed assets.

 Built to specification for Australian environmental conditions and vandalism resistance.

Features

• Heavy duty die cast aluminium casing
• Robust and highly resistant design
• Vandal resistant ensuring extra protection against malicious damage
• Adjustable 180° horizontally
• LED alignment indicator on the RX
• Anti-fog resistors in TX and RX (only with alim. 24V)
• IP55 Protection Rating
• Complies with EN12453, EN954, RoHS standards

Technical Specifications

• Power Supply: 12v DC - 24v AC/DC
• Absorption: 108mA at 24v AC
• Maximum Switching Power: 1A 24v AC
• Contacts N/O for trigger & N/C for safety

Dimensions

• Height: 130mm
• Width: 60mm
• Depth: 52mm
• Weight: 940g per pair

up to 40 meters range!
